KAEN GTAW350 AC/DC TIG Welding Machine
KAEN GTAW350 AC/DC TIG Welding Machine - Image 2

KAEN GTAW350 AC/DC TIG Welding Machine

RM5,680.00

Specification:

Input Voltage (V) AC415V±15%
Phase Three
Frequency (HZ) 50/60HZ
Input power(KVA) TIG: 9.2
MMA: 13.2
Rated Input Current(A) TIG: 14
MMA: 20
Rated Output Current(A) 20-315A
Start Arc current(A) 10 -160A
Pre-flow time(s) 0-15
Gas delay time(s) 0-15
Current slow up time(s) 0-15
Current decay time(s) 0-15
Cleaning ratio(%) -40-+40
Duty cycle(%) 40% – 315A/22.6V

100% – 199A/18V
No-load Voltage (V) 78V
Efficiency (%) 75%
Power Factor 0.93
Insulation Class F
Housing Protection Class IP21S
Tungsten(mm) 1.6/2.0/2.4/3.2/4.0
Net Weight (kg) 33
Gross Weight (kg) 36.5
Packing Dimension (mm) 630x320x610

Product Description

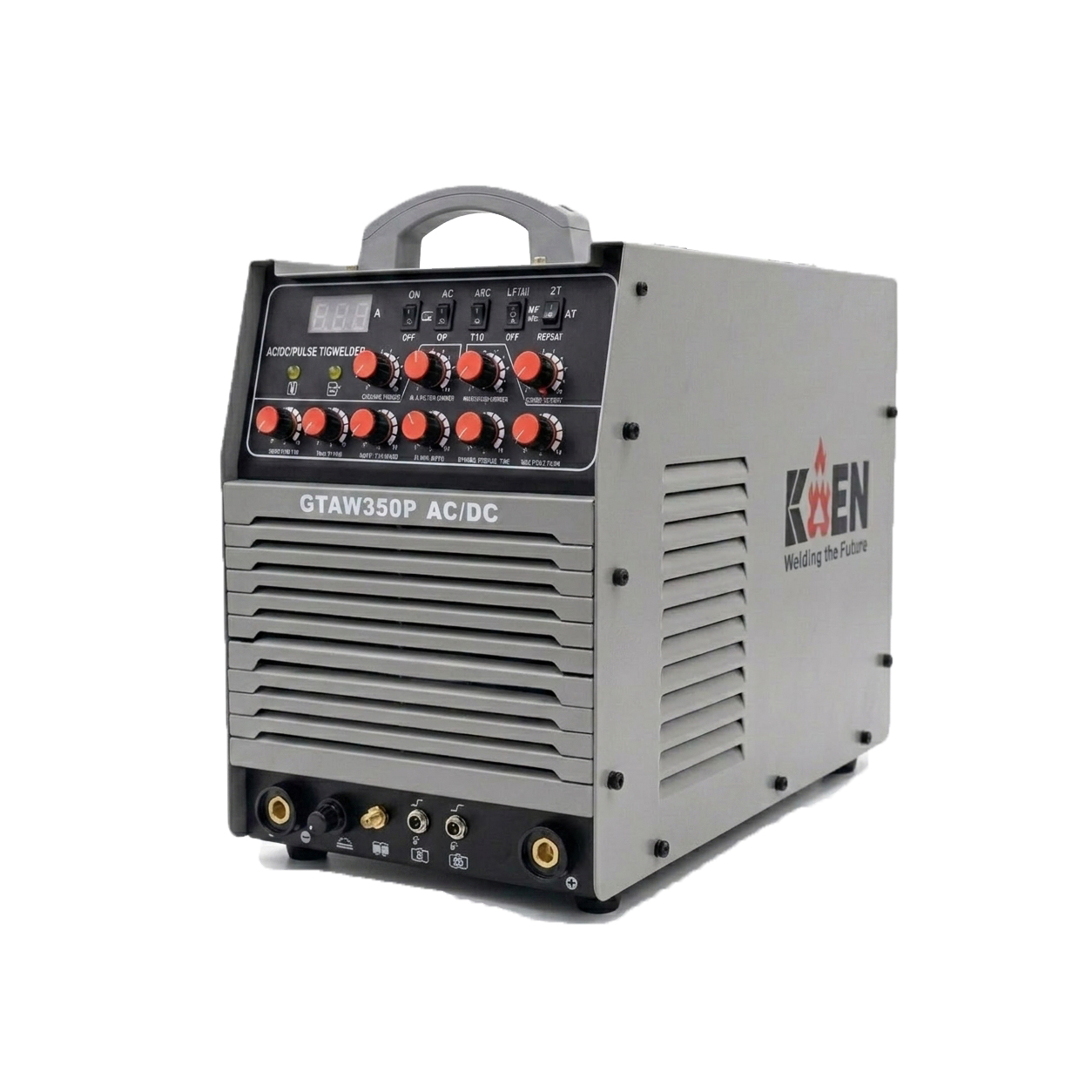

MODEL: KAEN GTAW350 AC/DC TIG Welding Machine

The KAEN GTAW350 AC/DC three phase multi-process welder is versatile solution for multiple applications due to its functions of AC TIG welding, DC TIG welding, Pulse TIG welding and MMA (stick) welding. ​The excellent technical characteristics of the 350 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.

FEATURES:
  • TIG & MMA dual welding functions
  • High frequency inverter, high-efficiency
  • Water cooled torch
  • Welding current and base current adjustable
  • Selection of Pulse mode available
  • 2T/4T functions available
  • Down Slope adjustable
  • AC balance adjustable
  • Pulse frequency and pulse width adjustable
  • Easy start, stable and reliable arc
  • Anti-Stick, Arc-Force, Hot Start
  • Can configure with foot pedal.
  • Equipped with digital display, offering precise current adjusting
APPLICATIONS:
  • Ship building and maintenance
  • Vehicle Engine repairs
  • Aluminium form work repairing
  • Aluminium Extrusions welding
  • Fabrications in chemical industry
  • Repair jobs in steel
  • Stainless steel repair jobs
  • Bronze & Brass repair jobs.

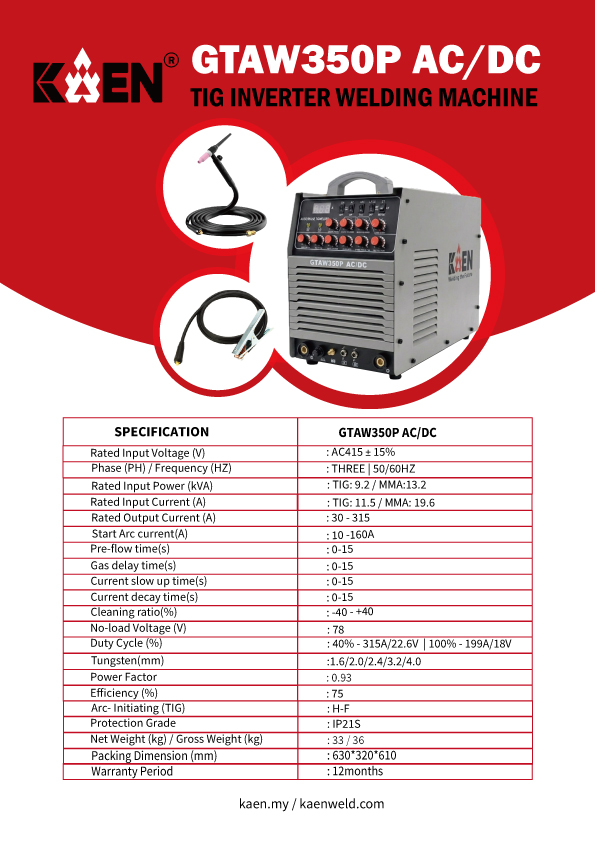

CATALOGUE

Download Here
