KAEN MultiPro 5in1 Welding Machine

RM3,200.00

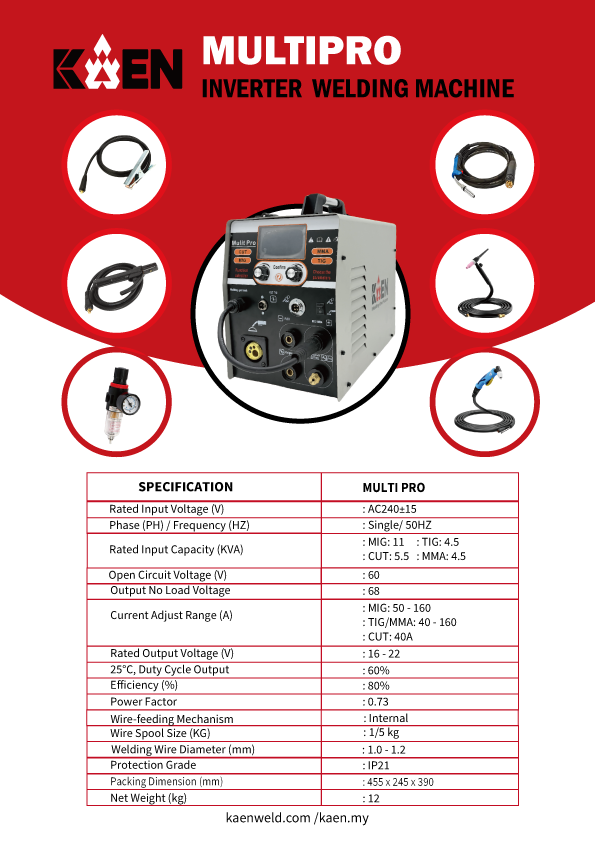

Specification:

Input Voltage (V) AC240V±15%
Phase | Frequency (HZ) Single | 50/60HZ
Rated Input Capacity (KVA) MIG: 11,TIG: 4.5
CUT: 5.5, MMA:4.5
Open Circuit Voltage (V) 60
Current Adjust Range (A) MIG: 50 -160
TIG/ MMA: 40 – 160
CUT: 40
Rated Output Voltage (V) 16 – 22
25℃, Duty Cycle Output 60%
No-load Voltage (V) 68V
Efficiency (%) 85%
Power Factor 0.73
Insulation Class F
Housing Protection Class IP21S
Wire-feeding Mechanism /

Wire Spool Szie (KG)

Internal |
1 kg / 5kg
Welding Wire Diameter (mm) 0.8 – 1.0
Welding Eletrode (mm) 2.6 – 3.2
TIG Rod (mm) 1.6
Net Weight (kg) 12
Packing Dimension (mm) 455 x 245 x 390

Product Description

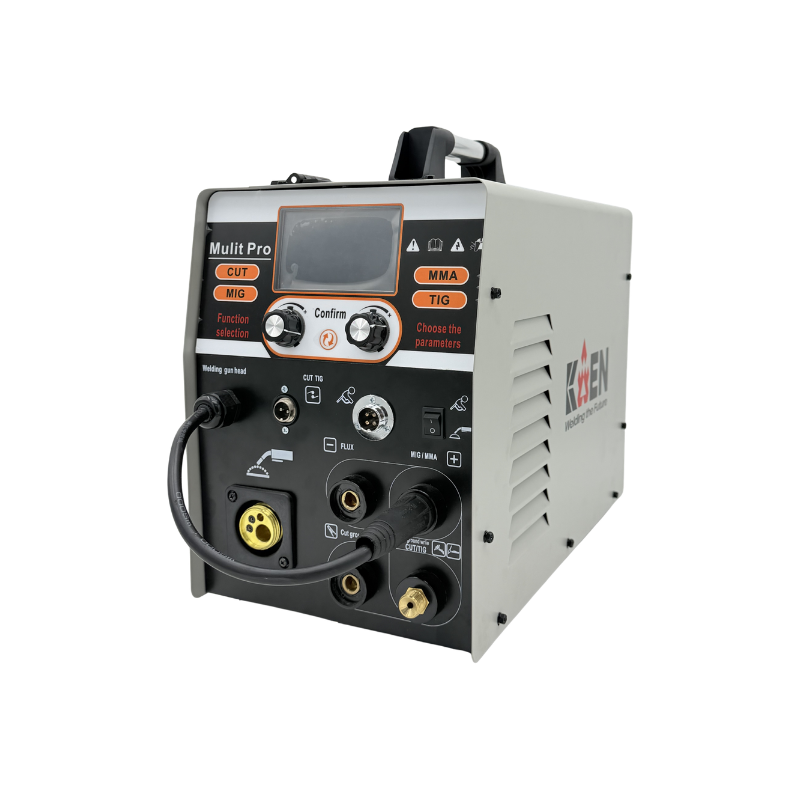

MODEL: KAEN MultiPro 5in1 Welding Machine

KAEN MultiPro 5-in-1 Welding Machine is a versatile, all-in-one welding solution designed for professionals and workshops that require multiple welding processes in a single compact unit. Built with modern inverter technology, KAEN machines are known for efficiency, reliability, and precision performance in industrial and repair environments.

This multipro welding combines:

  • MIG (Gas & Gasless / Flux Core)
  • MMA (Stick Welding)
  • TIG (Argon / Lift TIG)
  • Plasma Cutting
Features:
  1. 5-in-1 Multi-Process Capability
  2. Advanced IGBT Inverter Technology
  3. Smart Digital Control Panel
  4. Wide Material Compatibility: Carbon steel, Stainless steel, Aluminum, Alloy metals
  5. Portable & Compact Design
Applications:
  • Metal Fabrication
  • Automotive Industry
  • Construction & Maintenance
  • Workshop & DIY Use
  • Industrial Use
Advantages:
  • Multi-function → cost saving
  • Space saving (1 machine replaces many)
  • Flexible for different welding jobs
  • Suitable for both beginners & professionals
Catalogue:

Download Here
