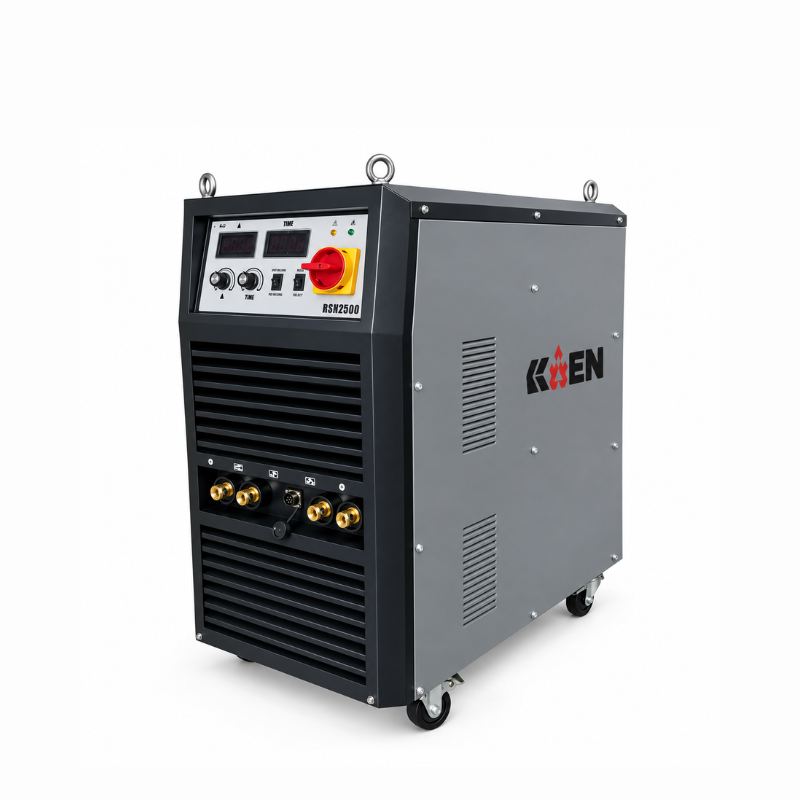

KAEN RSN2500 Stud Welding Machine

RM24,000.00

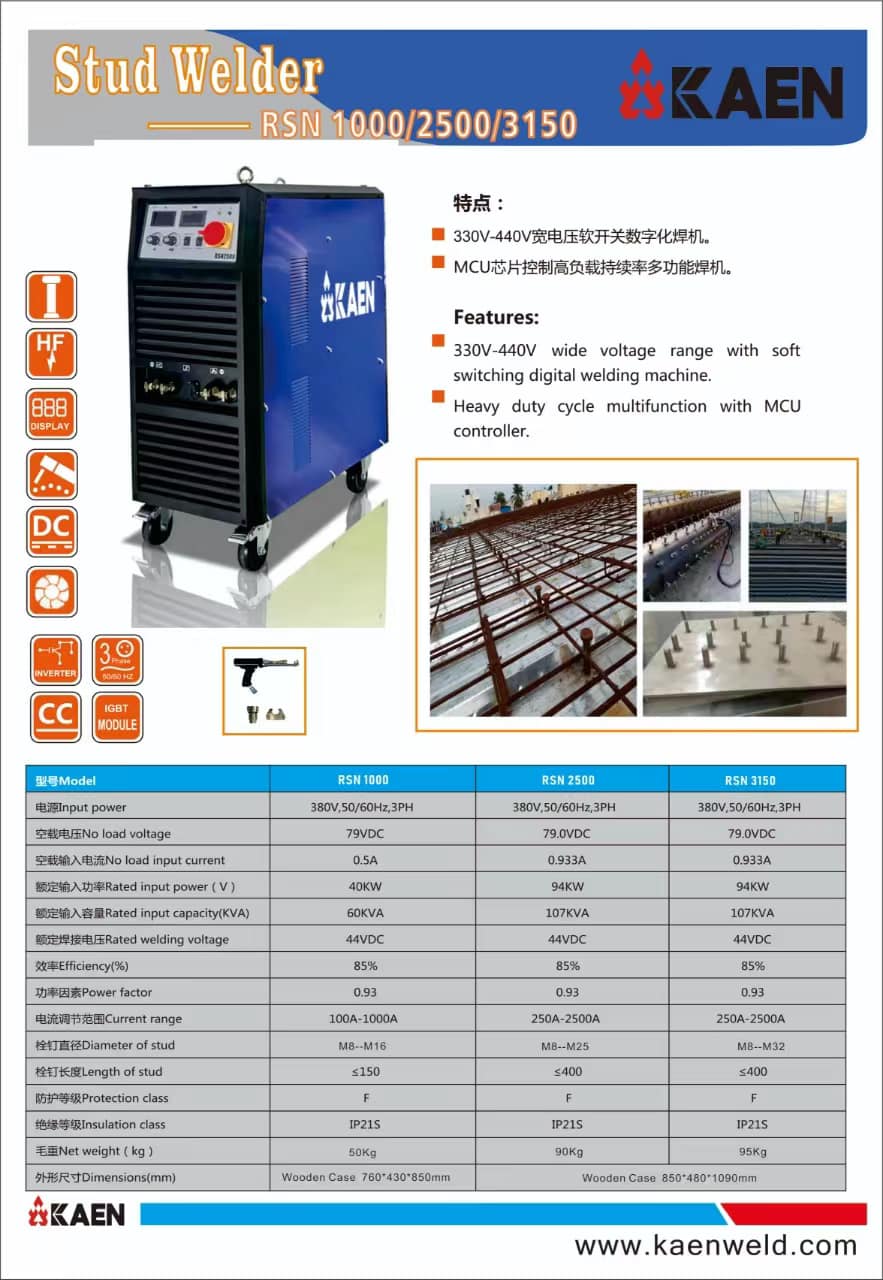

Specification :

Power supply : 415V±15% (3 Phase)
Frequency : 50 Hz
Input Power : 12.5KVA
No load Input Current : 0.933A
Rate Input Power (V) : 94KW
No load Voltage (OCV) : 79VDC
Rated Input Capacity (KVA) : 107KVA
Rated Welding Voltage : 44VDC
Current Range : 250A-2500A

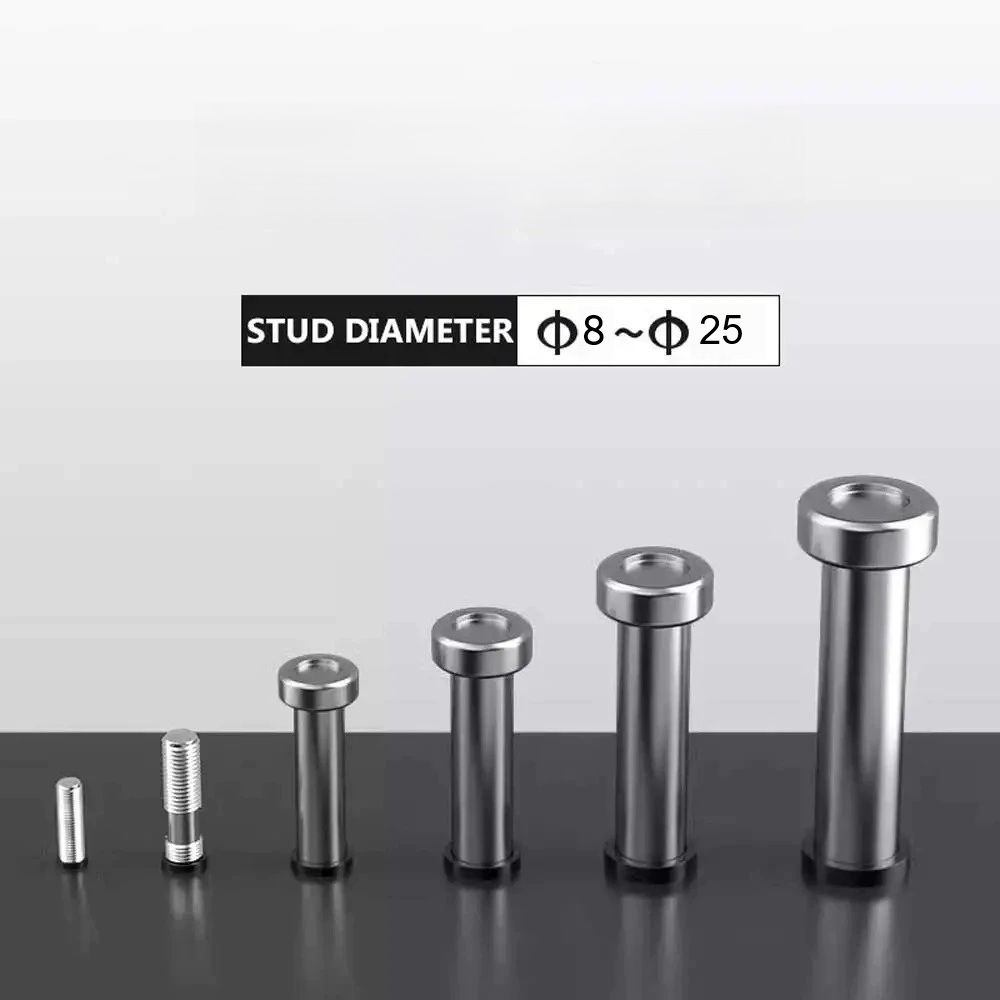

Diameter of Stud (mm) : M8 – M25
Length of Stud : ≤400
Duty cycle (25°c) : 60 %
Efficiency : 85%
Power Factor : 0.93
Class of Insulation : F
Degrees of Protection : IP21S
Net Weight (KG) : 90 KG
Packing Dimensions : 850mm x 480mm x 1090mm

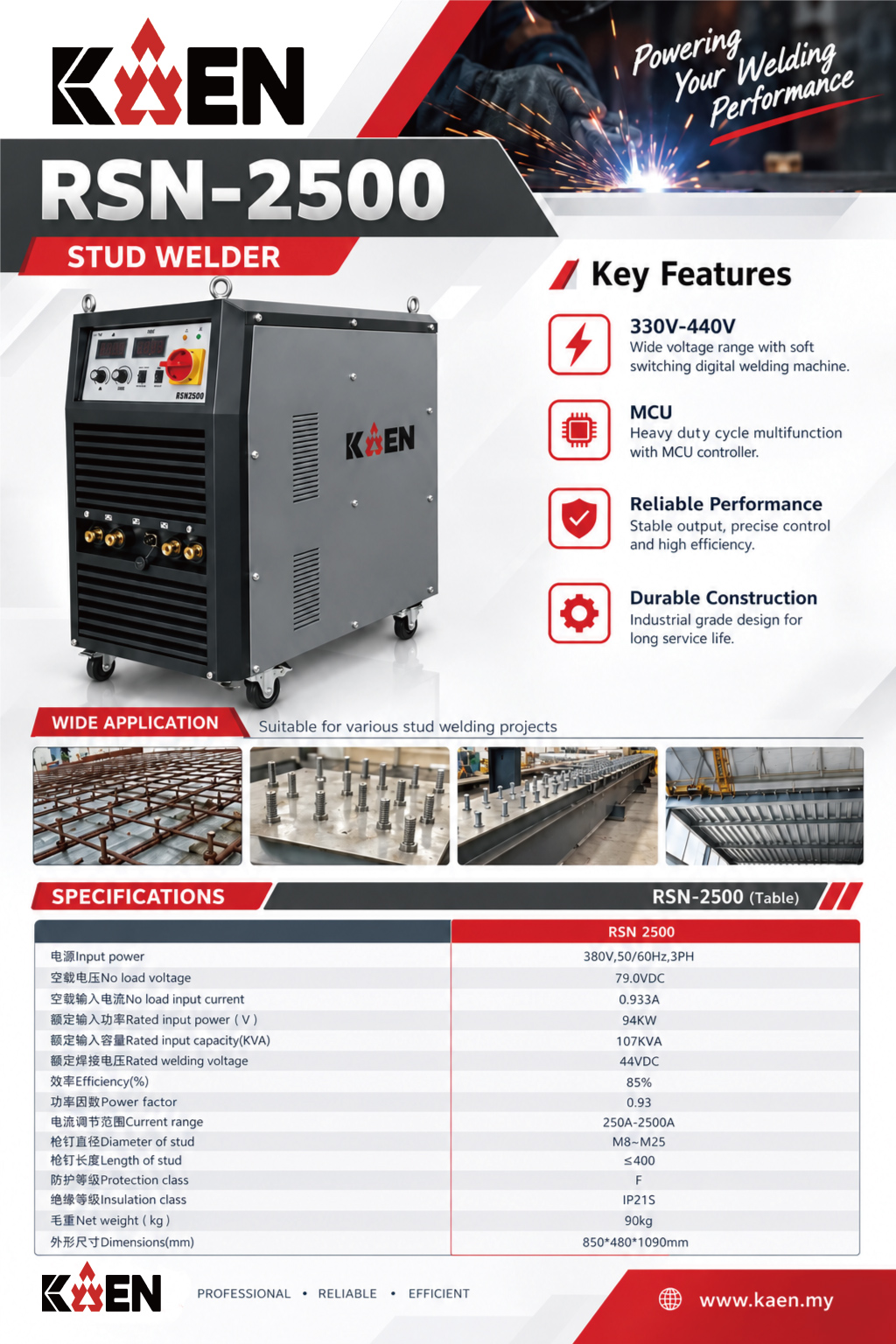

MODEL: KAEN RSN2500 Stud Welding Machine

Features:
  • Advanced control technology. High efficiency and Energy saving
  • High duty cycle. The contactless point control technology is used in the main circuit the reliability of the machine is high
  • Stud welding or Manual Metal Arc welding can be selected. The welding current and welding time can be set. The welding parameters are stable, which provides a reliable guarantee of stable welding quality.
  • The welding current and the welding time can be displayed, and have an over-heat protection LED indication.
  • Short welding time, which can be set between 0 and 3 seconds, Heat Affect Zone of welding is small. so the post-wedding deformation of the workpiece is very small.

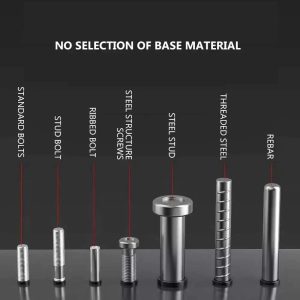

  • Suitable for welding o carbon steel, and stainless steel. copper, aluminum, and its alloy studs. the machine can be widely used.
  • Fast welding speed, high quality of welding joint.
  • Small volume. lightweight. easy to move and beautiful appearance
Product Warranty

12 months

Catalogue

Download Here

Technical Specification

Laser Power (W)

2000

Operating Mode

Continuous/Modulated

Central Emission Wavelength (nm)

1070-1090

Pulse Frequency (Hz)

50-5000

Cooling Method

Water Cooling

Output Fiber Length(m)

10 (Exposed 8)

Output Power Stability

<3%

Power Requirements

AC 200-240V (Single Phase)

Beam Quality

1.1

Focused Beam Diameter (mm)

0.3-1.5 (Adjustable)

Net Weight (kg)

Net weight 180
(with wooden frame),
240 including wire feeder

Dimension (cm)

Machine Dimensions:
L 95 * W 75 * H 103
Wire Feeder:
L 60 * W 30 * H 40
