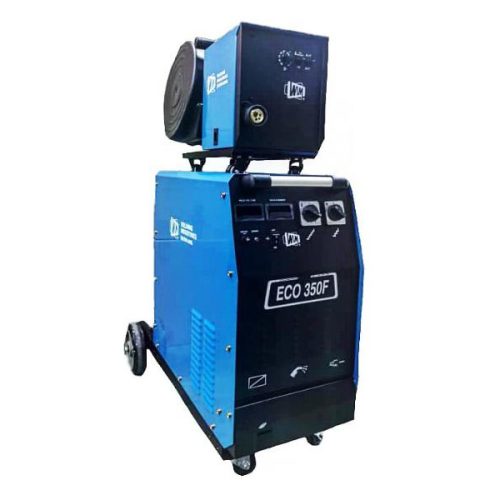

WIM ECO350F MIG Welding Machine

Primary Supply

50/60hz

3 ph (415V)

Max.Input Current

A

26

Output Rating

350A / 31V

Duty Cycle

%

60

Duty Cycle Rating at 60%

350A / 31V

Duty Cycle at 100%

270A / 28V

Output Control

Tapping

Voltage Adjustment

steps

2 x 12

Open Circuit Voltage

V

18 – 44

Welding Range at 50~210A

A

40 – 350

Filler Wire Size Range

mm

0.8 – 1.6

Wire Feeding Speed

Meter/min

1 – 17

Time (Spot/Stitch)

sec

0 – 5

Degree of Protection

IPS21

Insulation Class

H 180° C

Weight

Kg

157 (include 17Kg feeder unit)

Dimension (LxWxH)

mm

940x515x820

Product Description

MODEL: WIM ECO350F MIG Welding Machine

– The MIGWELD series is easy to adjust. Coarse and fine voltage steps are marked on the power source, providing easy control and quick value setting.
– The MIGWELD ECO350F has 24-steps. It had continuous, spot and stitch welding to facilitate different welding environments. These MIGWELD`s welding characteristics are excellent.
– Both in CO² and mixed gases.
– Better welding parameters 0.8mm – 1.6mm.
– Digital Amp and Volt display meter.
– Auto hold welding.
– Heavy-duty chassis construction.
– Double thermal protection for transformer and rectifier.
– Ergonomic and value-added features. (tool container, torch holder and lower gas tray holder).

Features:
  • High OCV and slow feeding program combines with wire tip sharpening feature to ensure one time successful arc starting.
  • Preset function of welding voltage and welding current enables it to be user friendly.
  • Typical Usage Automative, Maintenance Manufacturing, Construction, Ship Repairing & Metalworks.
Product Warranty:

12 months Warranty
