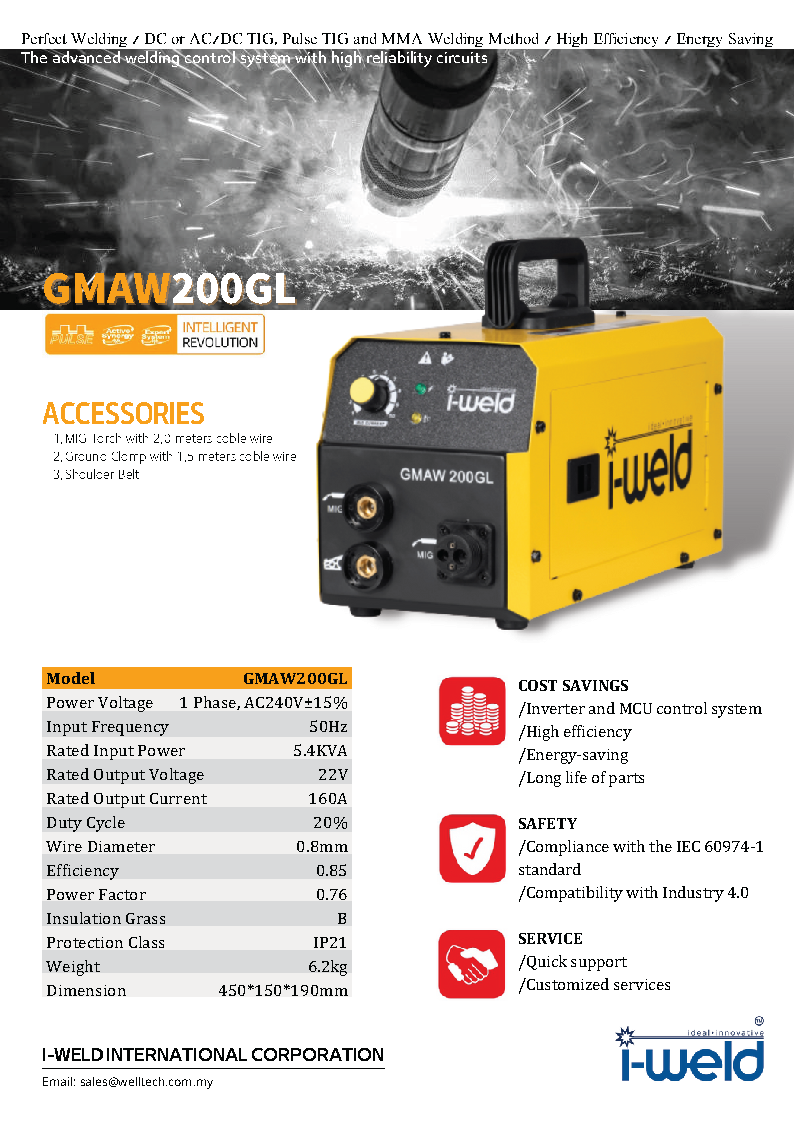

i-WELD GMAW200GL MIG Welding Machine
i-WELD GMAW200GL MIG Welding Machine - Image 2

i-WELD GMAW200GL MIG Welding Machine

  • Advanced (IGBT)inverter technology
  • Light, Compact, Easy to operate
  • Digital display, arc characteristic adjustable
  • Output characteristics is similar with AC welder characteristics ; strong arc performance, good stiffness
  • High maximum output voltage fluctuation
  • The inner characteristic control; fast system response and quickly respond to changes in the arc length continuous arc
  • Using the peak current control mode -work reliably even under frequent short circuit impact power device
Model: i-WELD GMAW200GL MIG Welding Machine
Applications of MIG welding
  • Used for most types of sheet metal welding
  • Fabrication of pressure vessels and steel structures
  • Light Industry Iron & Steels Processing Factories
  • Equipment Assemble & Repairs
  • Automotive industry and home improvement industry
Advantages of MIG welding
  • Creates high-quality welds
  • Minor weld splatter
  • Can be used to join dissimilar metals
  • Can be fully or semi-automatic
  • Good weld speed
Product Warranty

1 Year Warranty

Technical Specification

Input Voltage (V)

AC240V±15％
Phase

Single
Frequency (HZ)

50HZ
Rated Input Power (A)

4.8A
Current Adjust Range (A)

20-200A
40℃ 60% Duty Cycle Output

200
40℃ 100% Duty Cycle Output

155
No Load Voltage (V)

58V
Efficiency (%)

85%
Power Factor

0.73
Insulation Class

F
Housing Protection Class

IP21S
Welding Thickness (mm)

0.8+
Net Weight (kg)

14.5
Packing Dimension (mm)

380x168x280

1. GMAW220I Welding Machine
2. 3M Welding Cable with Mig Torch x 1
3. 3M Welding Cable with Earth Clamp x 1
4. CO2 Regulator x 1
5. 5kg MIG Wire x 1
6. 10L Portable CO2 Gas Cylinder x 1
6. Owner’s Manual x 1
