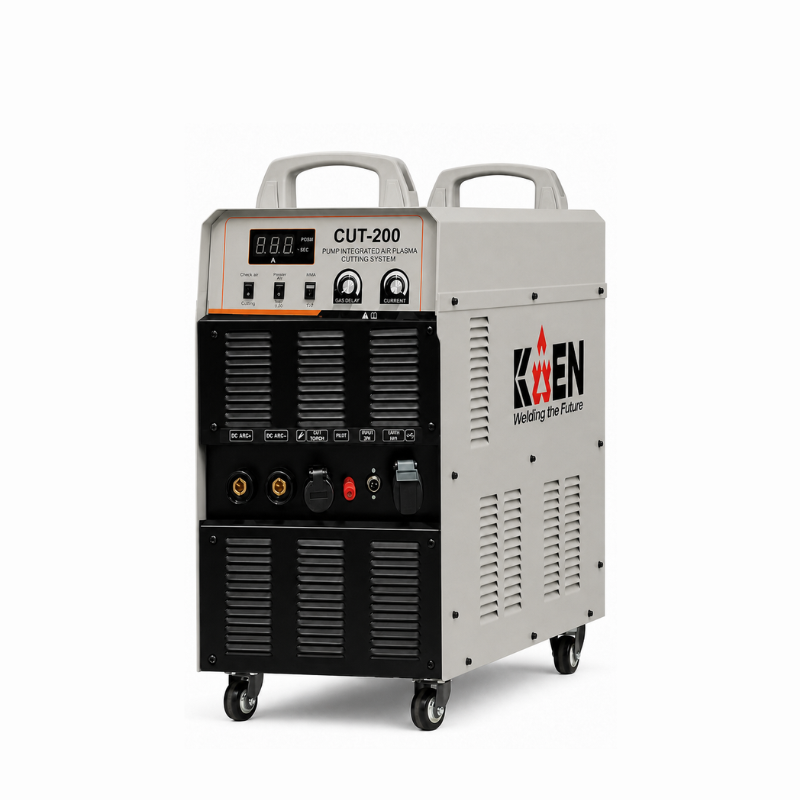

KAEN CUT-200 Plasma Cutter Built-In Compressor
KAEN CUT-200 Plasma Cutter Built-In Compressor - Image 2

KAEN CUT-200 Plasma Cutter Built-In Compressor

RM5,880.00

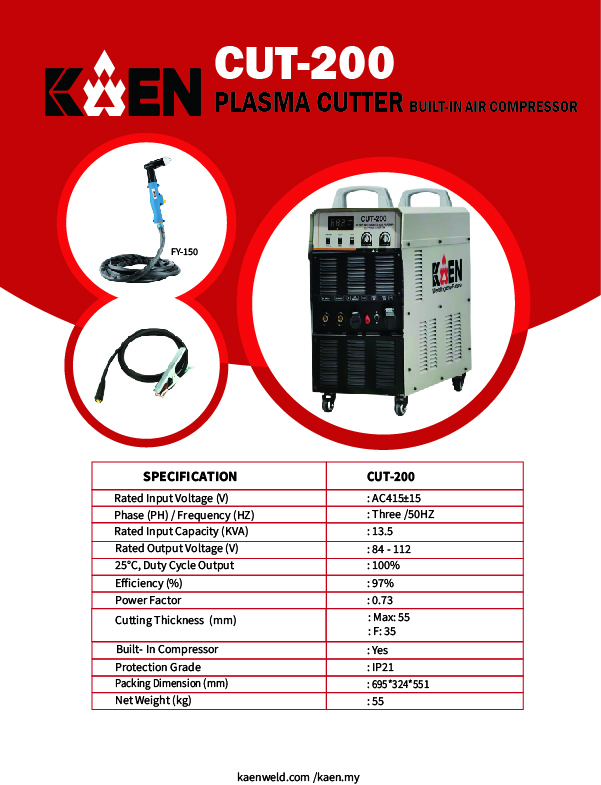

Specification :

Processes: Plasma Cutting
Power supply : 415V±15％ (3 Phase)
Frequency : 50 Hz
Input Power : 12.5KVA
Rated Output Voltage : 120 V
Rated Output Current : 100 V
Max Open Circuit Voltage (OCV): 380 VDC
Duty cycle 25°c : 60 %
Efficiency : 85%
Arc-Starting: No Contact
Air flow: 0.5 m3/min
Max. Cutting Thickness : 55 MM
Qualified Cutting Thickness : 45 MM
Power Factor : 0.93
Class of Insulation : F
Degrees of Protection : IP21S
Net Weight : 55 KG
Dimensions (MM) : 480X251X420

Product Description

MODEL: KAEN CUT-200 Plasma Cutter Built-In Compressor
Features:
  • CUT-200 plasma cutting machine with external air input and built in compressor is three phase,or 3~415V,50Hz, constant current (CC) output power sources especially designed for the air plasma arc cutting.
  • All the controls and adjustment knob of the cutting power source are placed on the front panel for easy operation.
  • Cutting cable, the torch, earth cable, and gas hose can be easily connected to the power source.
  • The output current of the CUT-200 cutting machine can be adjusted by a cutting current adjustment knob between 20-50A
  • This machine is a very good selection for big-thickness metal (up to 40mm) cutting. It is also an excellent choice for stainless steel and metal cutting.
Applications:

Suitable for shipyards, Tool / Die repair Maintenance, Fabrication

Product Warranty：

12 months Warranty
