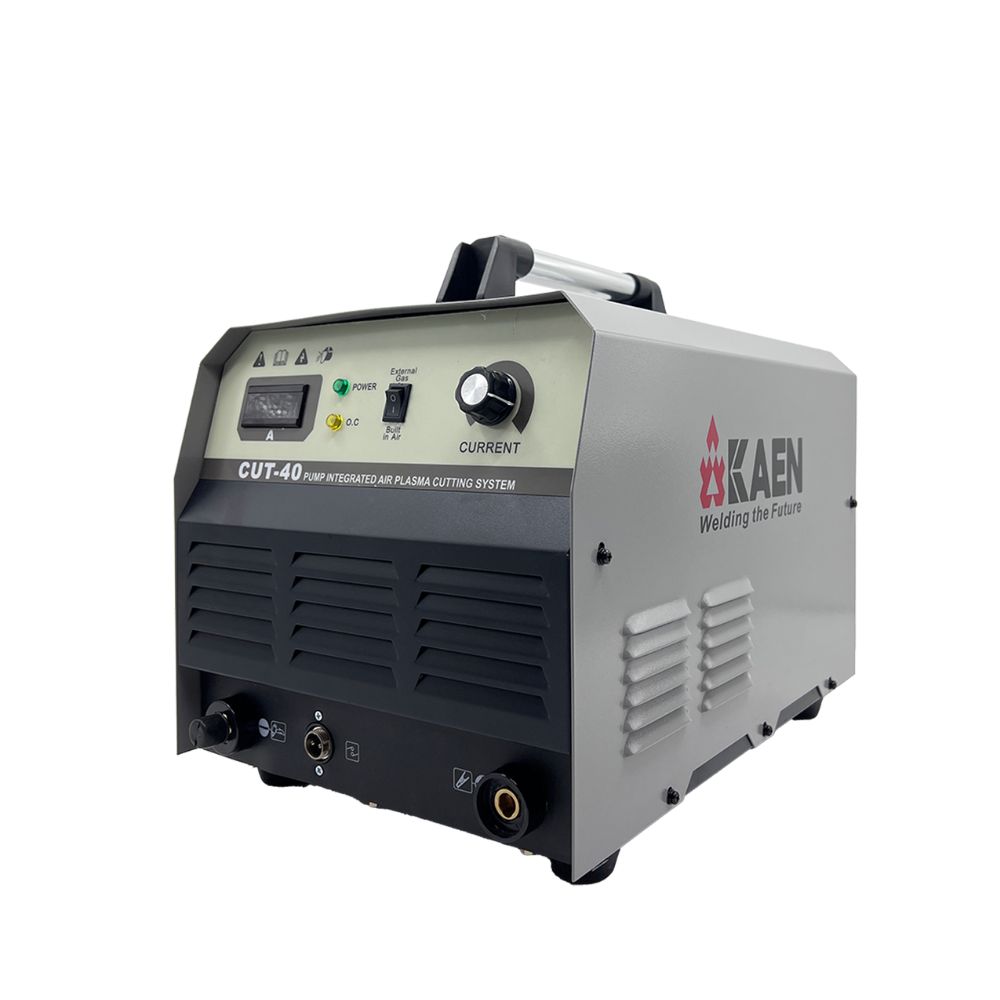

KAEN CUT-40 Plasma Cutter with built in Compressor
KAEN CUT-40 Plasma Cutter with built in Compressor - Image 2

KAEN CUT-40 Plasma Cutter with built in Compressor

RM2,280.00

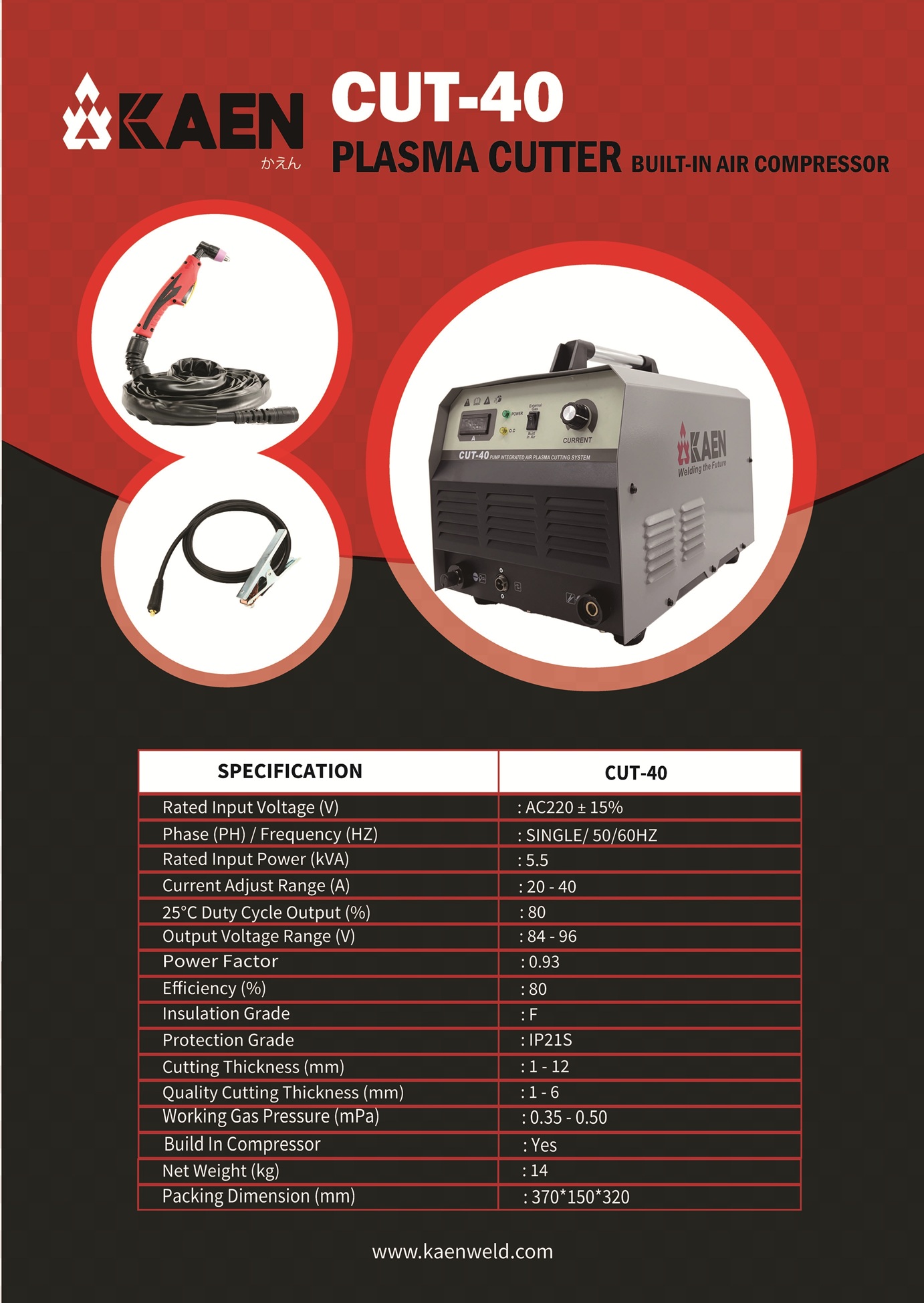

Specification :

Processes: Plasma Cutting
Power supply/ Phase: 240 V ±15% / 1HP
Frequency: 50/60 Hz
Input Power (kVA): 5.5
Input current: 22.1 A
Max Open Circuit Voltage (OCV): 102VDC
Output Current Range (A): 20-40
No-load voltage: 220 V
Operation voltage: 96 V
Max. cut: 6 mm
Quality cut: 4 mm
Load sustained rate of : 60%
No-load loss: 40 W
Efficiency: 85%
Power factor: 0.93
Isolation class: F
Protection class: IP 21
Air compressor pressure: 4.5
Coolng mode: Forced air cooling
Weight: 14 kg
Packing Dimension (mm): 370*150*320

Product Description

MODEL: KAEN CUT-40 Plasma Cutter with built in Compressor

Features:
  • KAEN CUT-40 Plasma Cutter with a built-in maintenance-free air compressor,
  • Over-current protection and overload protection to ensure safety;
  • Ideal for light- and medium-duty daily welding applications;
  • Closed-loop feedback control, built-in fan and ultra-low voltage intelligent regulator, stable output voltage, easy to start in unstable voltage area.
  • Digital current meter displays voltage for viewing the actual and preset values for greater accuracy and repeatability in your welding procedure.
  • The Inverter technology will ensure the welding current is highly stable at grid voltage fluctuation and arc length changes. Arc is soft and can adjust automatically.
  • Applicable for welding Carbon steel, stainless steel, aluminium, brass, & cooper.
Light Industrial Applications:

Suitable for shipyards, Tool / Die repair Maintenance, Fabrication

Product Warranty:

12 Months

Catalogue:

Download Here
