KAEN CUT-80B Plasma Cutter with built in Compressor
KAEN CUT-80B Plasma Cutter with built in Compressor - Image 2

KAEN CUT-80B Plasma Cutter with built in Compressor

RM3,880.00

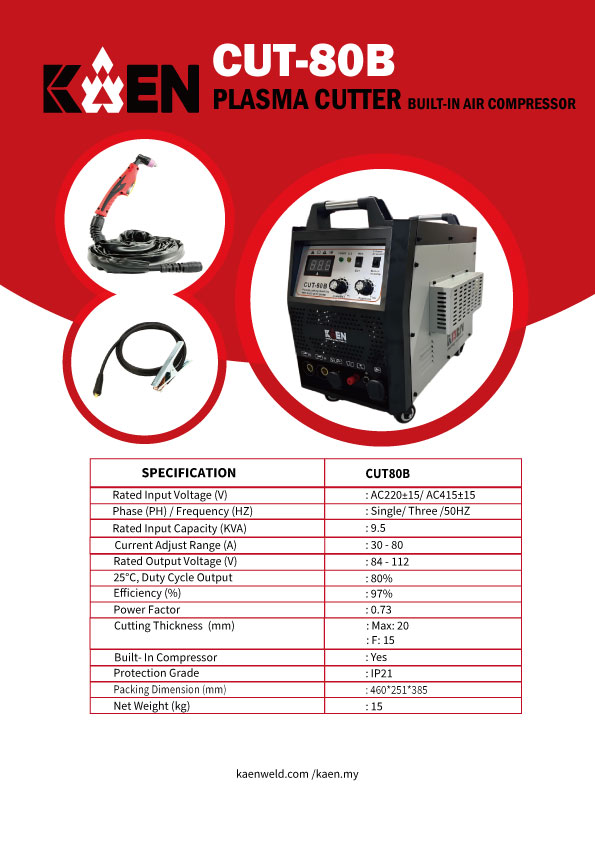

Specification :

Processes: Plasma Cutting
Power supply/ Phase: 240V ±15% / 1HP
415V ±15% / 3HP
Frequency: 50/60 Hz
Input Power (kVA): 9.5
Max Open Circuit Voltage (OCV): 88VDC
Output Current Range (A): 30-80
No-load voltage: 280V or 415V
Operation voltage: 112 V
Max. cut: 20 mm
Quality cut: 15 mm
25°C @ Duty Cycle : 60%
Efficiency: 85%
Power factor: 0.93
Isolation class: F
Protection class: IP 21
Air compressor pressure: 4.5
Coolng mode: Forced air cooling
Weight: 15 kg
Packing Dimension (mm): 460*250*385

Product Description

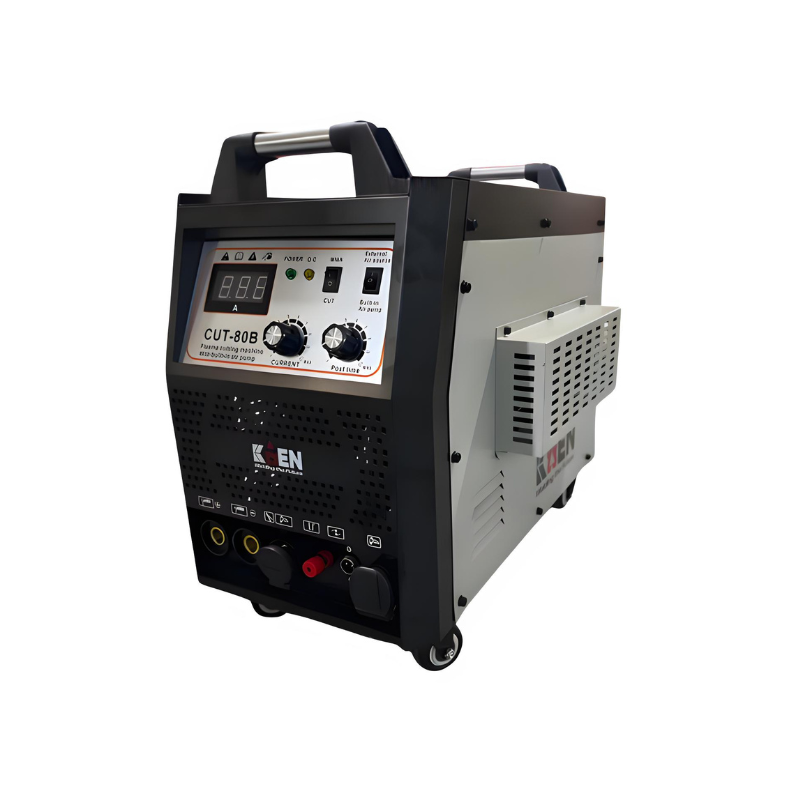

MODEL: KAEN CUT-80B Plasma Cutter with built in Compressor

Features:
  • KAEN CUT-80B Plasma Cutter with a built-in maintenance-free air compressor.
  • Over-current protection and overload protection to ensure safety.
  • Ideal for light- and medium-duty daily welding applications.
  • Closed-loop feedback control, built-in fan and ultra-low voltage intelligent regulator, stable output voltage, easy to start in unstable voltage area.
  • Digital current meter displays voltage for viewing the actual and preset values for greater accuracy and repeatability in your welding procedure.
  • The Inverter technology will ensure the welding current is highly stable at grid voltage fluctuation and arc length changes. Arc is soft and can adjust automatically.
  • Applicable for welding Carbon steel, stainless steel, aluminium, brass, & cooper.
Applications:

Suitable for shipyards, Tool / Die repair Maintenance, Fabrication

Product Warranty:

12 Months

Catalogue:

Download Here
