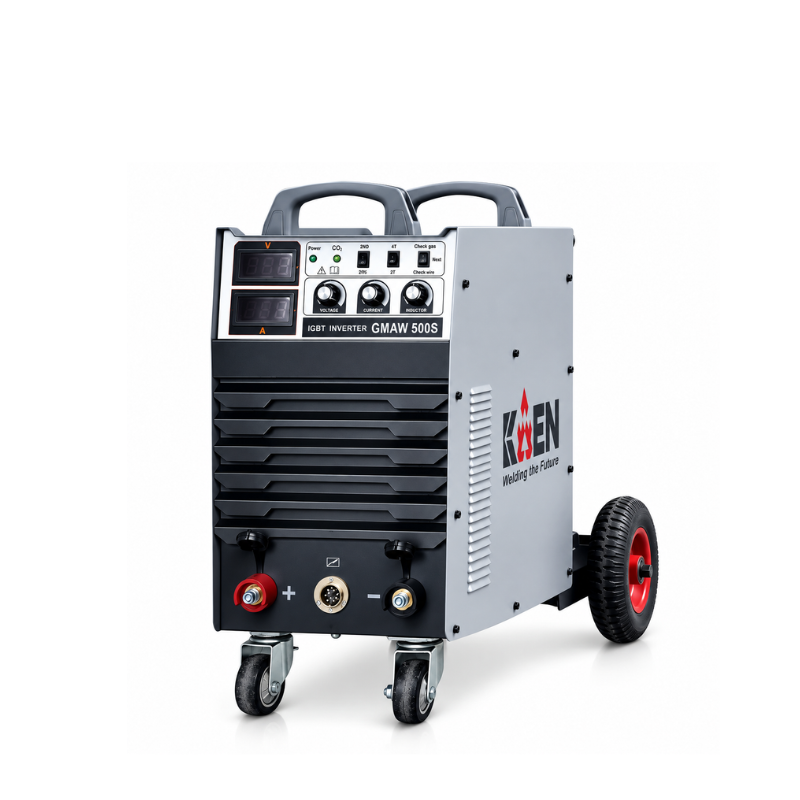

KAEN GMAW500S MIG Welding Machine

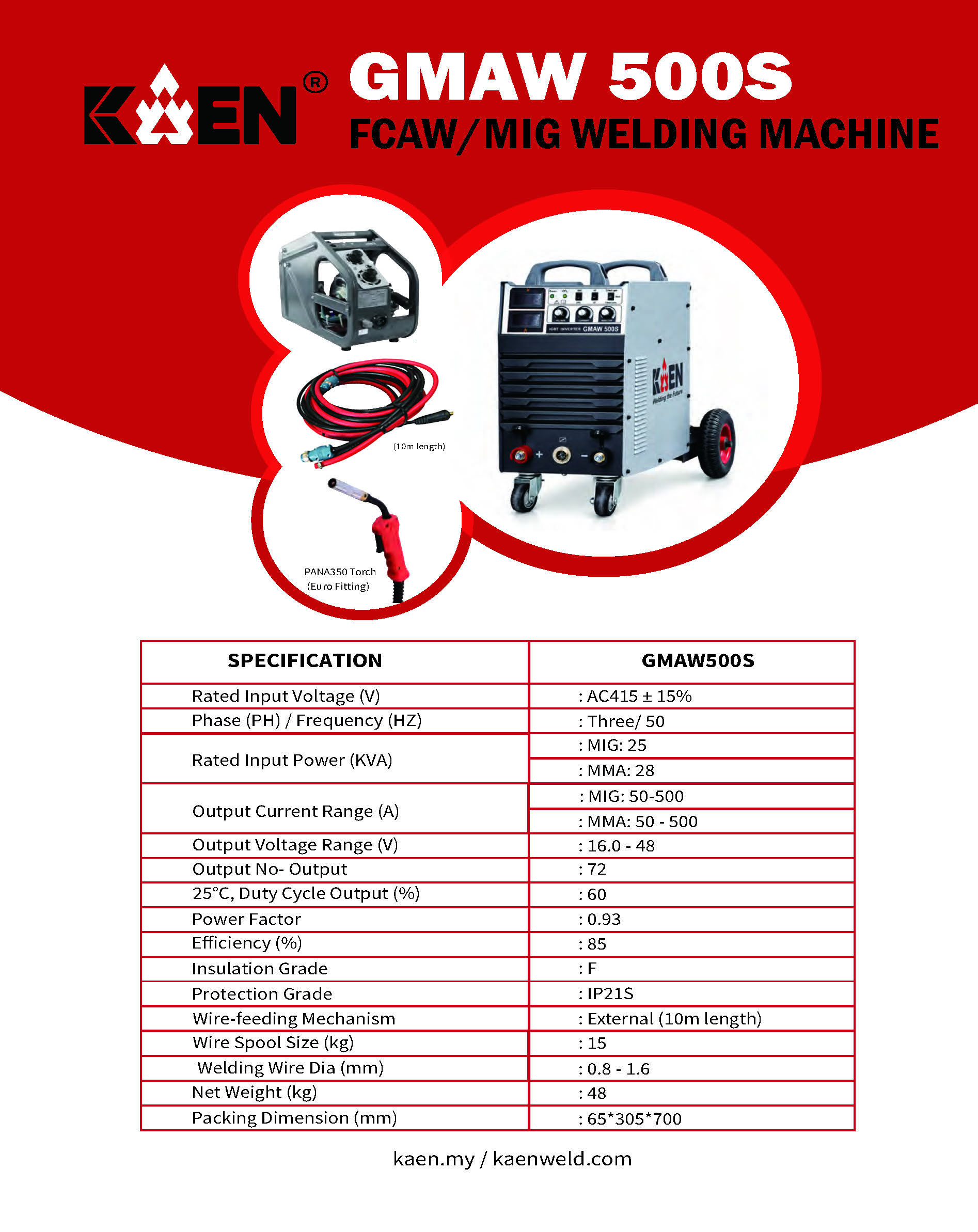

KAEN GMAW500S MIG Welding Machine - Image 2

KAEN GMAW500S MIG Welding Machine

RM6,480.00

Specification:

Input Voltage (V) AC415V±15%
Phase Three
Frequency (HZ) 50/60HZ
Rated Input Power (A) 23.5A
Current Adjust Range (A) 50-500A
40°C 60% Duty Cycle Output 500
40°C 100% Duty Cycle Output 380
No-load Voltage (V) 68V
Efficiency (%) 85%
Power Factor 0.73
Insulation Class F
Housing Protection Class IP21S
Welding Wire Thickness (mm) 0.8 -1.6
Wire Spool Size (kg) 15
Net Weight (kg) 40
Packing Dimension (mm) 620x305x700

Product Description

MODEL: KAEN GMAW500S MIG Welding Machine

  • Designed for welding using continuous coils, a filled wire and electrodes.
  • Three controllers for regulating wire speed, welding voltage and welding arc properties.
  • Very durable wire feeder with four feed wheels.
  • Option for easy inversion of welding polarity.
  • Professional and technical consultation of welding experts.
Features:
  • A welding machine that is designed for welding using coils on spools of 15 kg weight and using electrodes.
  • The welding machine is equipped with wheels for easy, convenient portability.
  • The welding machine has a lightweight, optimally convenient external feeder for moving between different locations.
  • The perfect solution for industry and many continuous welds, for joining shops and welding departments in factories that weld using coils of 0.8 to 1.6 mm diameter.
  • Welding machine works using the most advanced IGBT technology.
  • Welding machine has full overload protection and open phase protection.
Applications of KAEN GMAW500S:
  • Used for most types of sheet metal welding
  • Fabrication of pressure vessels and steel structures
  • Light Industry Iron & Steels Processing Factories
  • Equipment Assemble & Repairs
  • Automotive industry and home improvement industry
Product Warranty:

1 Year Warranty

Catalogue:

Download Here
