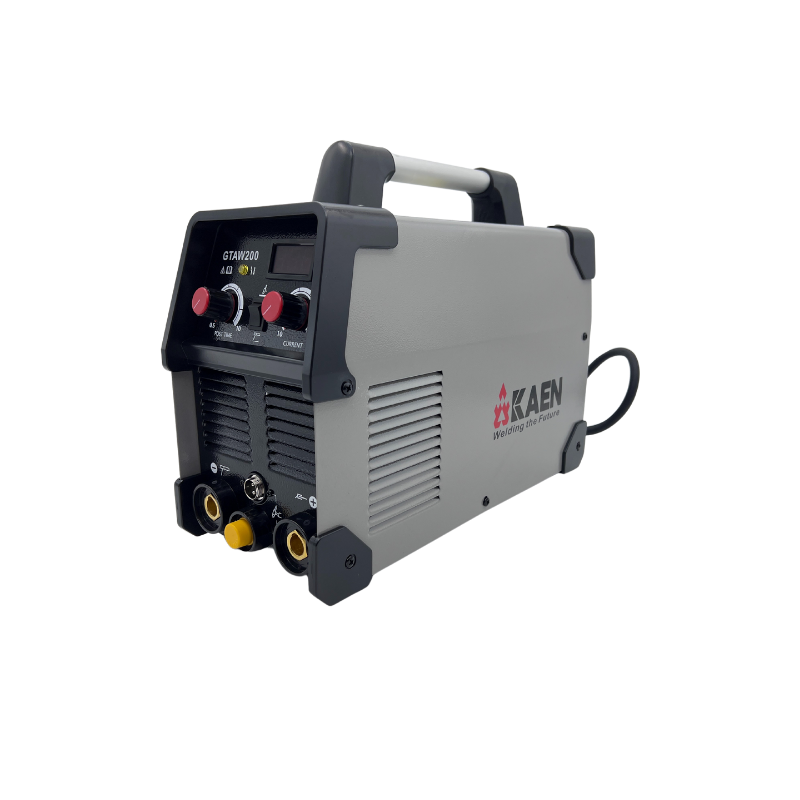

KAEN GTAW200 TIG Welding Machine

RM2,580.00

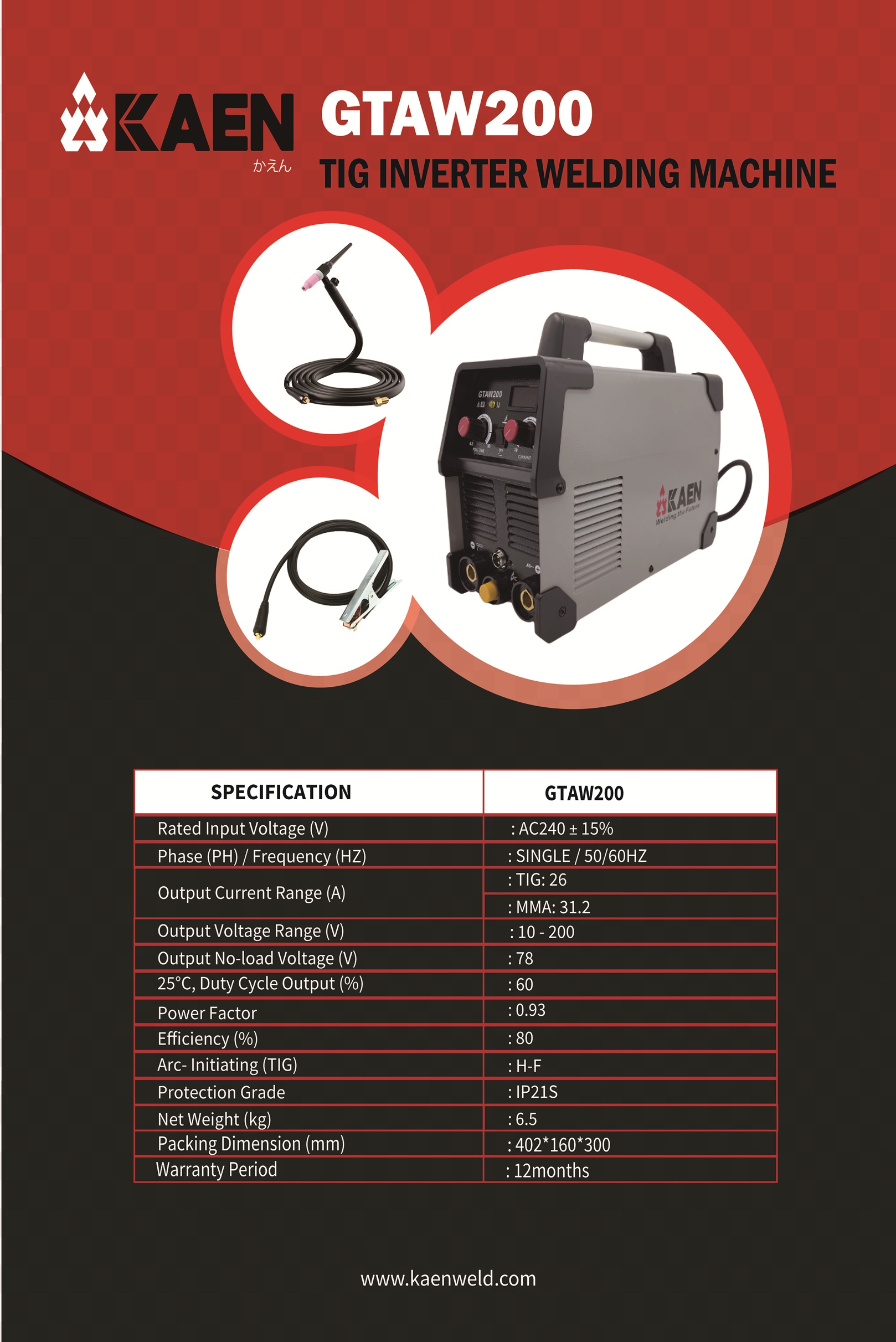

Specification:

Input Voltage (V) AC240V±15%
Phase Single
Frequency (HZ) 50/60HZ
Output Current Range (A) TIG: 26
MMA: 31.2
Input power(KVA) TIG: 3.5
MMA: 4.6
Output Voltage Range (V) 20-200A
25℃ Duty Cycle Output (%) 60%
No-load Voltage (V) 78V
Efficiency (%) 85%
Power Factor 0.73
Insulation Class F
Housing Protection Class IP21S
Tungsten(mm) 1.6/2.0/2.4
Net Weight (kg) 6.5
Gross Weight (kg) 7.8
Packing Dimension (mm) 350x168x250

Product Description

MODEL: KAEN GTAW200 TIG Welding Machine

FEATURES:
  • New generation of MOSFET inverter welding machine
  • Dual function: HF-TIG and MMA
  •  The whole machine is stable and reliable
  • 15% tolerance for input voltage
  • With 100% success ignition rate
  • The post time of gas adjustable (0.5-10s).
  • No fake on the output current of machine
  • Excellent welding performance for thin sheet metal.
  • Very low cost of use.

APPLICATIONS:

  • Fabrication in Dairy industry.
  • Fabrications in chemical industry.
  • Fabrication in cast iron.
  • Lorry body, bus body repairs.
  • Repair jobs in steel.
  • Stainless steel railing.
  • Stainless steel repair jobs.
  • Bronze & Brass repair jobs.
CATALOGUE

Download Here
